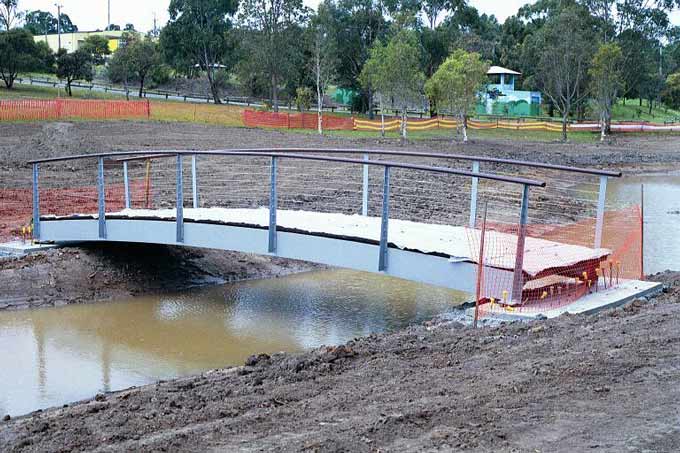

 Arched bridge with Cruiserline handrail at installation |
 Arched bridge with Cruiserline handrail |
 Arched bridge with Cruiserline handrail side view |

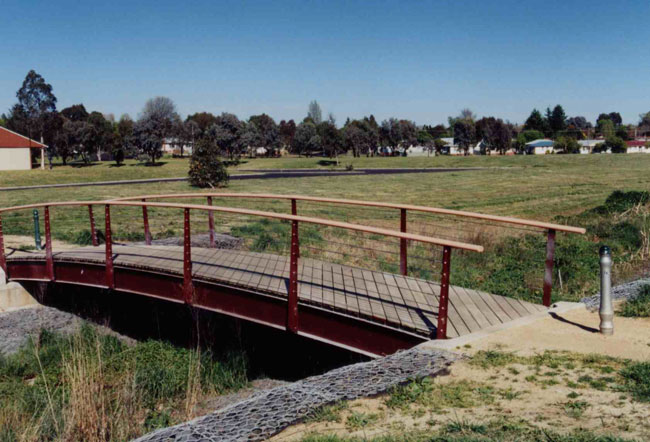

 Orange Arched Steel Bridge Cruiserline Handrail |
 Arched Steel bridges Caloundra |

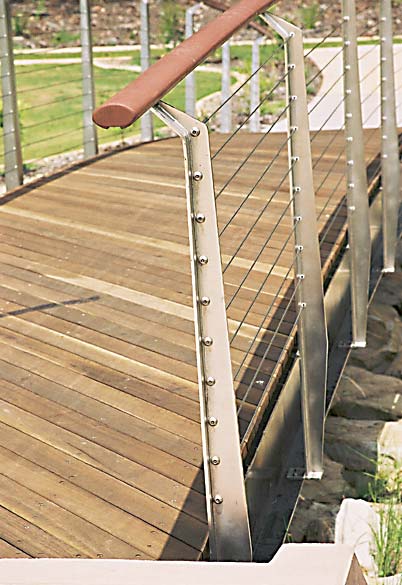

 Optional stainless rails and angled deck |
 Cruiserline handrail curved beam |
|||
Click/tap on an image to view the full-sized image(s) | ||||
| Arched Steel Footbridges details | |
|---|---|
| The arched steel bridge and associated cruiserline rail was designed by James Pierce and Associates for OSA.
Copyright remains with James Pierce and Associates. Due to restrictions in the size that can be rolled this bridge in arched format has a maximum size of 16m x 2.0m. The bridge can be extended to 20m x 2.0m with a slightly hogged girder. |
Please contact Outdoor Structures Australia for additional information.
